Cattle Portable

16′ EASY ADJUSTABLE LOADING CHUTE

A loading chute designed for cattle and large livestock. The primary framing on this chute consists of 1 1⁄2″ 14-gauge square tubing with 16-gauge sheet metal sides. The floor of the ramp is constructed of 2″ x 12″ wood flooring with steel traction bars. A heavy duty tongue is made from 3″ x 3″ square tubing. It’s one of only a few loading chutes that can adjust height levels from truck beds to gooseneck trailers.


Specifications

•  48″ of sheet metal, 60″ overall high side
•  16′ length
•  Loading heights up to 5′
•  58″ High •  48″ of sheet metal, 60″ overall high side
•  1″ round cleats spaced every 12″ that can flip up for wash out
•  Telescoping tongue slides in for loading and unloading, and out for transport
•  2 heavy-duty stands help support the weight with pads that swivel for uneven ground
•  Independent flip-outs to fill the space between the chute and the trailer
•  16″ tires


16′ LOADING CHUTE WITH SIDE DOOR ACCESS AND CATWALK

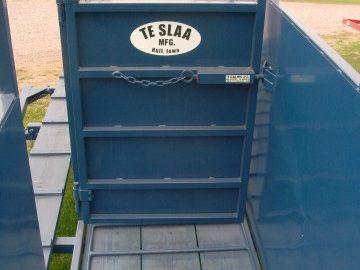

This loading chute built on a rugged mobile platform is packed with features. It works great for all sizes and types of livestock. This chute design has a useful stop/access door to help to sort when loading. It’s one of only a few loading chutes that can adjust height levels from truck beds to gooseneck trailers.


Specifications

•  48″ of sheet metal, 60″ overall high side
•  16′ length
•  Loading heights up to 5′
•  1″ round cleats spaced every 12″ that can flip up for wash out
•  18″ wide catwalk with cleats
•  Telescoping tongue slides in for loading and unloading, and out for transport
•  2 heavy-duty stands help support the weight with pads that swivel for uneven ground
•  Independent flip-outs to fill the space between the chute and the trailer
•  16″ tires


Click Here to view the Livestock Loading Chute Brochure




12′ PORTABLE CATTLE LOADING CHUTE

Our simple and rugged loading chute.


Specifications

•  48″ of sheet metal, 60″ overall high side
•  12′ length
• Ready to use at semi truck height
•  1″ round cleats spaced every 8″ that can flip up for wash out
•  Telescoping tongue slides in for easy loading and unloading, and slides out for transport
•  2 heavy-duty stands help support the weight with pads that swivel for uneven ground
•  Frame is 1 1/2″ 14 ga. square tubing
•  Floor is 2″x12″ Green treated lumber
• 16″ tires


CATTLE PORTABLE GALLERY
