Hog Straight Enclosed

Straight


Features


Specifications

•  16 ft, 24 ft, 28 ft, models available in straight and 3-way loadout
•  Loading height up to 10ft
•  Adjustable support legs
•  2 adjustable filler panels at each end to close all gaps between building and trucks
•  Tongue telescopes out of the way under the unit or hinged down on the 3-way unit to the left or right

•  Side door entryway for the operator
•  Divided center walkway  – one for the livestock and one for the operator
•  69″ overall width, 33″ livestock width, 18″ operators walkway width, 16″ rims & tires, 6 bolt wheels
•  Safety chain

Construction

•  Constructed from 1 1/2″ 14 ga. square tubing with 16 ga. sheet metal walls
•  Side door with locking catch
•  Inside door with self-locking slam catch
•  3500 lbs. self braking safety winch with 5/16″ cable
• Heavy Duty 3″ X 3″ square tube tongue
•  Corrugated sheet metal top
•  Locking arms to lock adjustable undercarriage for transporting

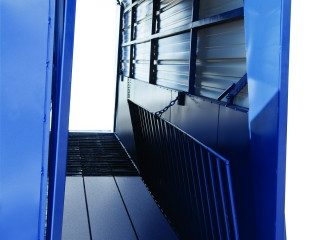

HOG STRAIGHT ENCLOSED GALLERY
