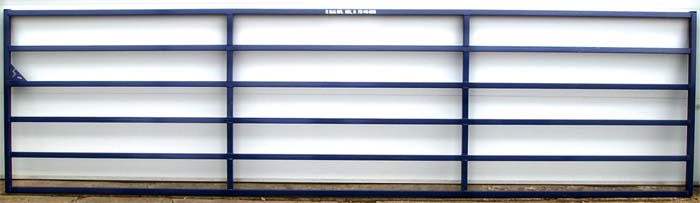

Gates

Available in 3 sizes of 1 1/4″ 1 1/2″ & 2″


Features

All gates come with STD with a 3′ piece of chain for the chain ties.

1 1/4 inch

• 6 bar cattle gate
• 1 1/4″ 14-ga. square tubing
•50″ high
• Gate measures 6″ short of size to allow for hinges
• sizes 3′ 4′ 6′ 8′ 10′ 12′ 14′ 16′ 18′ & 20′

1 1/2 inch

• 6 bar cattle gate
• 1 1/2″ 14-ga. square tubing
•50″ high
• Gate measures 6″ short of size to allow for hinges
• sizes 4′ 6′ 8′ 10′ 12′ 14′ 16′ 18′ & 20′

2 inch

• 6 bar cattle gate
• 2″ 14-ga. square tubing
•50″ high
• Gate measures 6″ short of size to allow for hinges
• sizes 3′ 4′ 6′ 8′ 10′ 12′ 14′ 16′ 18′ & 20′

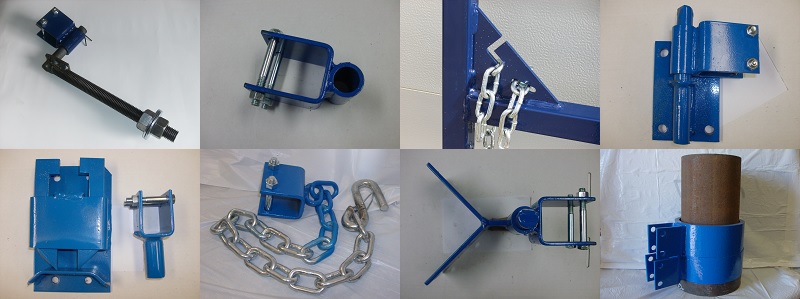

Hinges

Bolt Hinge  This adjustable cattle gate hinge works well with wood posts.  Has 7/8″ diameter pin.  Available in 12″ (standard), 16″, & 20″.  Can be purchased with or without U Clamp.  (U Clamp shown)
Corner Hinge  This cattle gate hinge works well with wood posts or concrete walls.  Has 7/8″ diameter pin.  Can be purchased with or without U Clamp.  (U Clamp shown)
Strap Hinge  This cattle gate hinge works well with wood posts or concrete walls.  Has 7/8″ diameter pin.  Can be purchased with or without U Clamp.  (U Clamp shown)

Flat Hinge This cattle gate hinge works well with wood posts or concrete walls.  Has 7/8″ diameter pin.  Can be purchased with or without U Clamp.  (U Clamp shown)
 Flag Hinge  This cattle gate hinge is a simple weld on hinge.  Has 7/8″ diameter pin.  Can be purchased with or without U Clamp.  (U Clamp shown)
Channel Hinge  This adjustable cattle gate hinge works great for welding onto round steel posts.  Easily adjustable.  Has 7/8″ diameter pin.  Can be purchased with or without U Clamp.  (U Clamp shown)

Channel Hinge with Flat Plate  This adjustable cattle hinge works well with wood posts or concrete walls.  Easily adjustable.  Has 7/8″ diameter pin.  Can be purchased with or without U Clamp.

 Chain Tie Gusset  Welded onto all of our Gates.  Heavy Duty Latch.  1/4″ thick.  Accepts 1/4″ chain.  Beveled corner allows for easy welding onto any gate.
Bullet Latch with U Clamps  Spring loaded latch. Available with 5/8″ diameter pin or 7/8″ diameter pin.  Clamps onto 1 1/4″, 1 1/2″, or 2″ square gate.  You can add a chain or rope to the loop to enhance ease of opening.
Slam Lock  Heavy duty latch that works with gravity. Easy to use and simplistic.  Comes with or without U Clamp for 1 1/4″, 1 1/2″, or 2″ square gating.  (U Clamp shown)


U Clamp  Clamps onto either 1 1/4″, 1 1/2″, or 2″ square tubing.  1″ schedule 80 pipe fits 7/8″ diameter pin.  Works in combination with all of our hinges.
U with Stub  1 1/8″ pin.  Clamps onto 1 1/4″, 1 1/2″, or 2″ square tubing.  Works in combination with our Slam Lock.
Offset U Clamp  Allows gate to swing 180 degrees in one direction.  Clamps onto either 1 1/4″, 1 1/2″, or 2″ square tubing.  1″ schedule 80 pipe fits 7/8″ diameter pin.  Works in combination with all of our hinges.

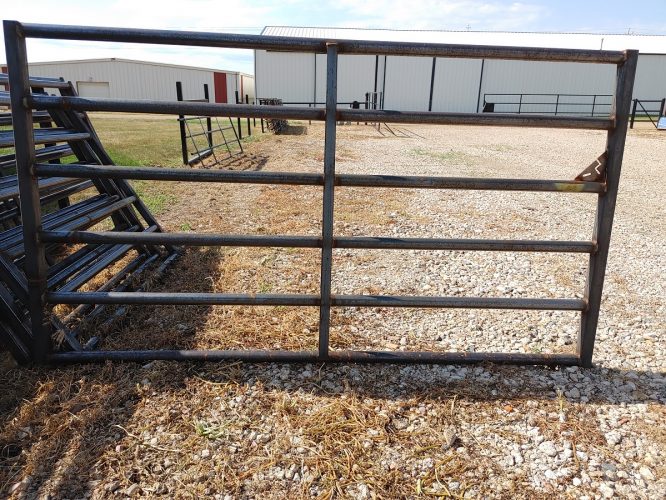

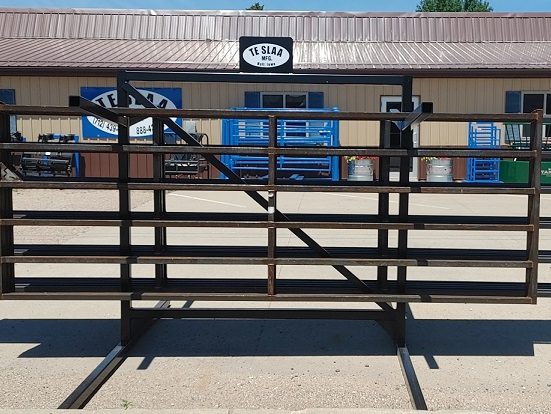

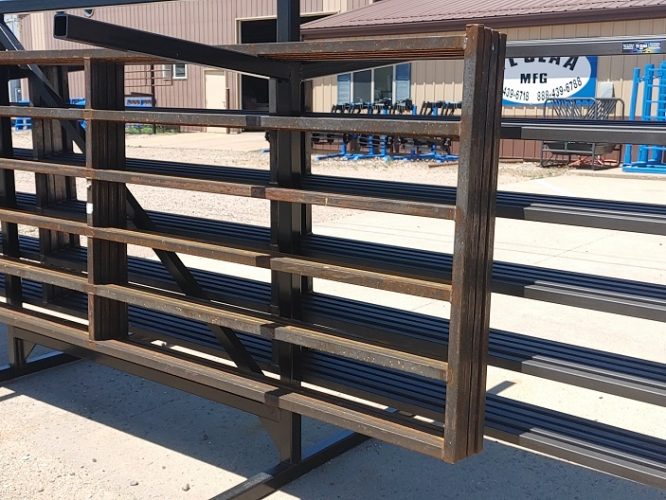

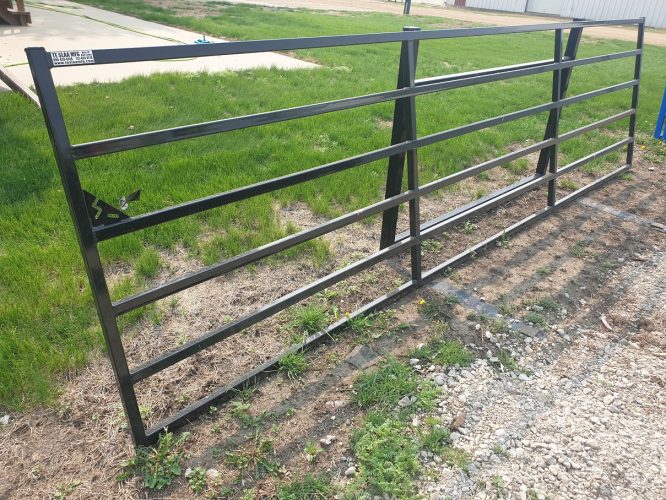

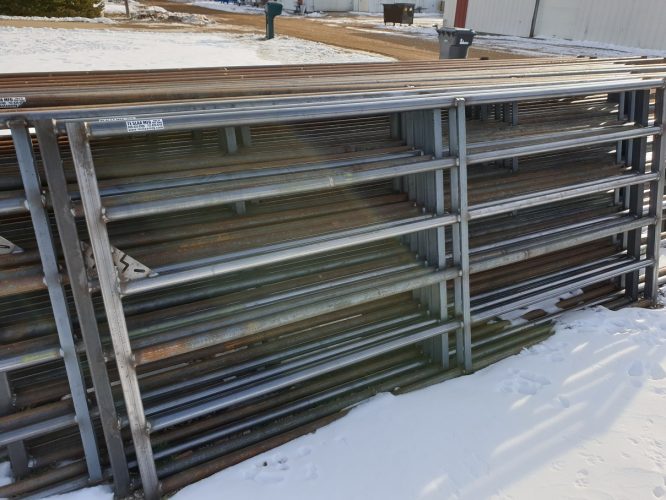

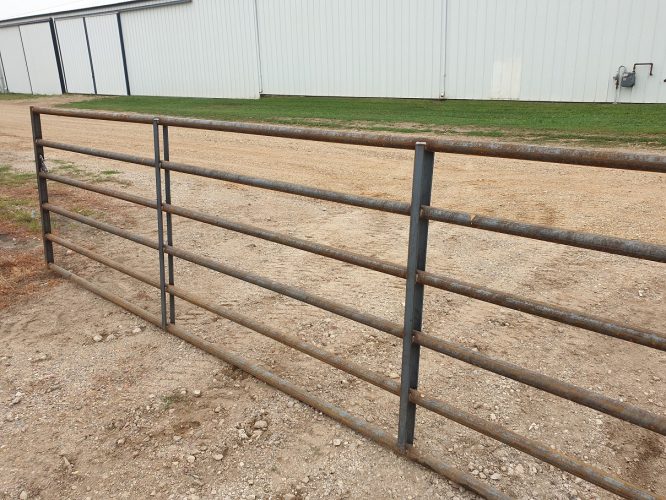

GATES GALLERY
